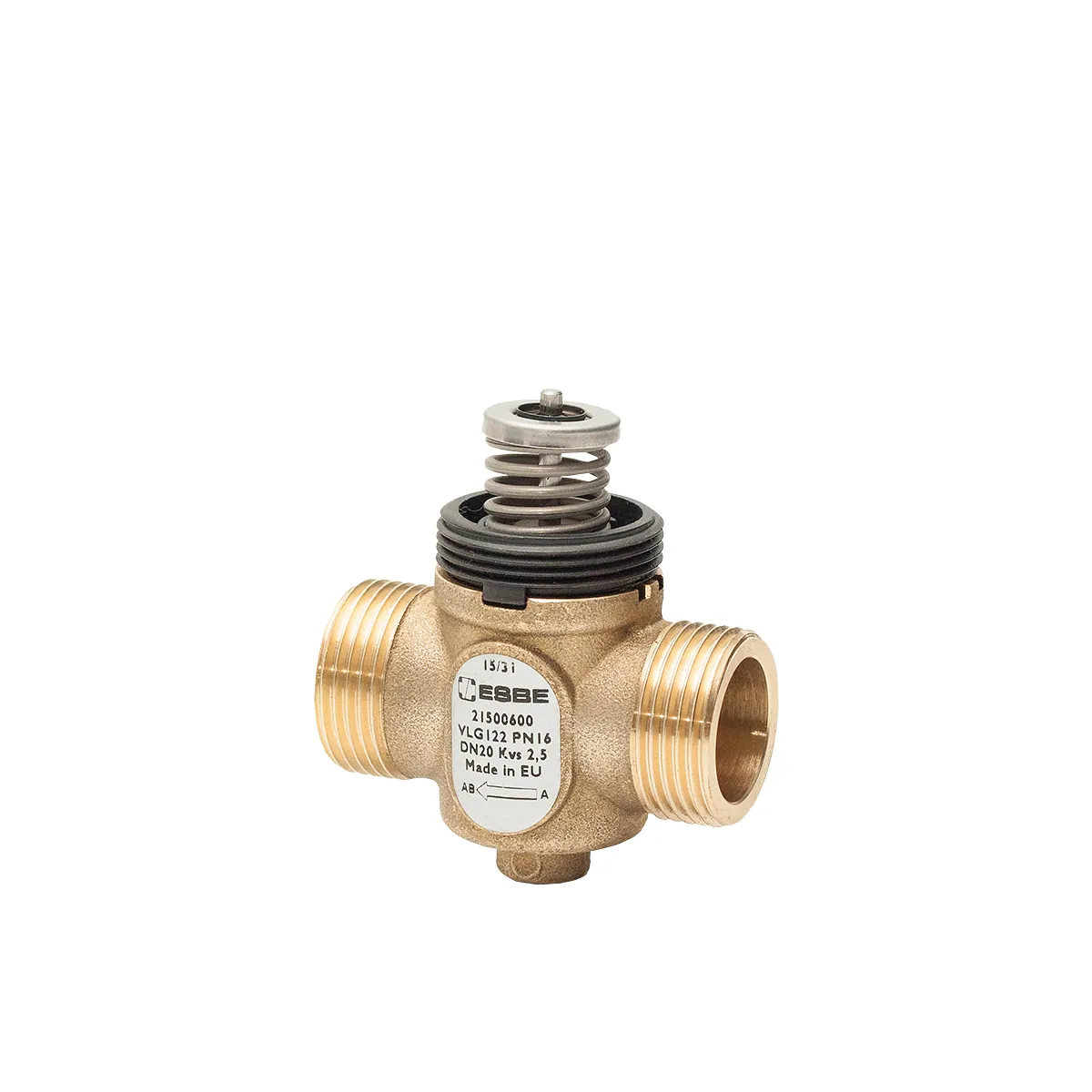

Säätöventtiili ESBE VLG122 PN16 15-0,6 G1/2″

Fan coil valve

VLG100

Perfect match between the valve and ESBE actuator Series ALG400

Compact and easy to install

Different Kvs values available

ESBE Valve Series VLG100 is a linear valve suitable for the control of heated and chilled water in heating, air-conditioning plants and fan coil units. Valves are motorized by ALG400 (thermo-electrical actuator) and the actuator-valve assembly is easily made thanks to the threaded ring nut. VLG100 has compact dimensions to enable an easy mounting within limited spaces for example on terminal unit coils.

The valves are available in 2-way, 3-way or 3-way with by-pass versions and are normally closed (NC) without actuator, i.e. stem is closing upwards. The combination with ESBE actuator ALG400 is also normally closed (NC) with stem going upwards.
